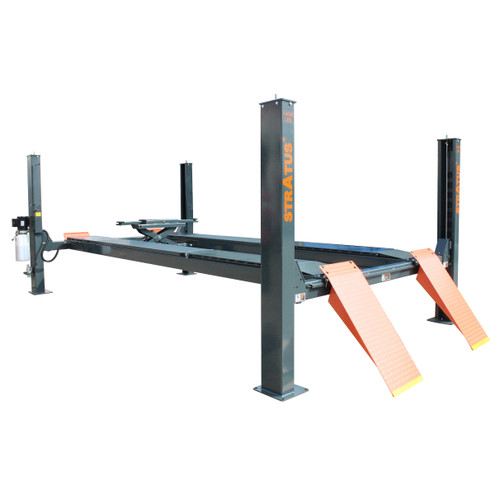

Ready for heavy duty lifting? Then, the Stratus SAE-414 Car Lift is just what you need. Able to handle up to 14,000 lbs, this 4 post lift is perfect for servicing larger vehicles. Its pneumatic safety lock release gives you peace-of- mind, knowing your car stays secure during the entire lifting process. Easy to use and highly durable, this 4 post car hoist for sale is another premium product from Stratus Auto Equipment.
Important Notes
- A $250 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
- Sales tax will be automatically waived for out of Texas Buyers
- Lift will be shipped with free delivery to Commercial Address, Local Installer or Truck Terminal. Residential Addresses will have a additional $150 fee
- Buyer is responsible for unloading freight - freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer
- There is an In-House pick-up discount of $1200
Product Features

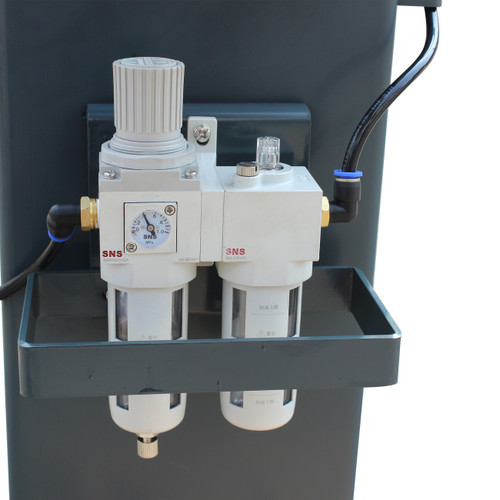

- Pneumatic safety lock release lift
- Max lifting height limiter switch to ensure the cylinders work within the stroke

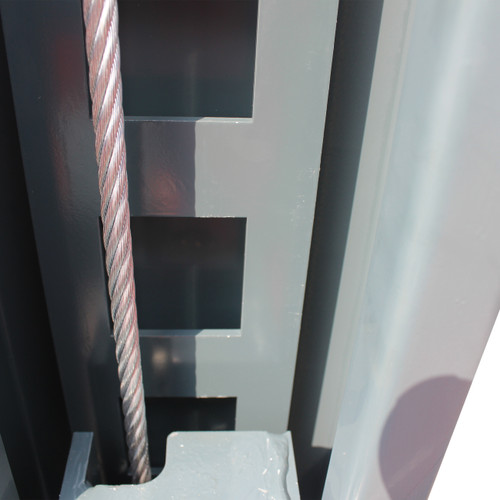

- Dual safety device design: Second safety device will be automatically locked while primary safety locks are out of operation.
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Reinorange (RAL 2004)
Standard Accessories (Included)

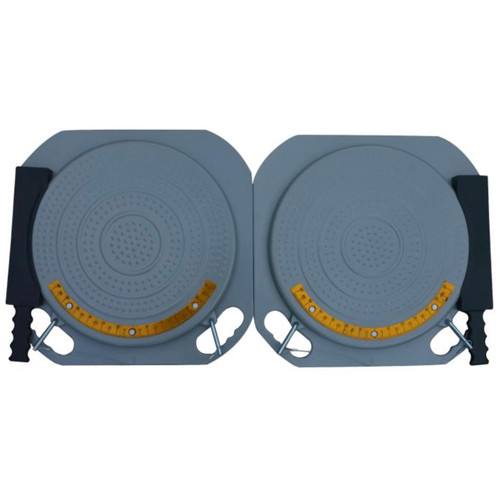

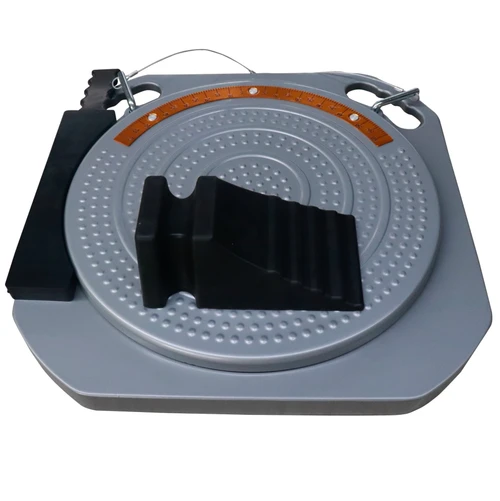

Optional Add-On Accessories (Sold Separately)
Product Specifications
Capacity
Rise
|
Min lifting height
|
7 1/2” (191 MM)
|
|
Max lifting height
|
73 7/16” (1865 MM)
|
|
Lifting Time
|
~50 SEC
|
|
Clearance Height
|
65 15/16” (1675 MM)
|
Outside Dimensions
|
Overall Height
|
91 ½” (2324 MM)
|
|
Overall Width
|
144 9/16” (3672 MM)
|
|
Overall Length w/ ramps
|
277 3/16” (7040 MM)
|
|
Overall Length w/o ramps
|
237 3/8” (6030 MM)
|
Inside Dimensions
|
Width columns
|
107 9/16” (2732 MM)
|
|
Drive Thru
|
82 1/2” – 86 7/16” (2096 MM – 2196 MM)
|
|
Runways
|
Runway width
|
20” (508 MM)
|
|
Runway Length
|
227 3/16” (5770 MM)
|
|
Between Runways
|
42 1/2” – 46 7/16” (1080 MM – 1180 MM)
|

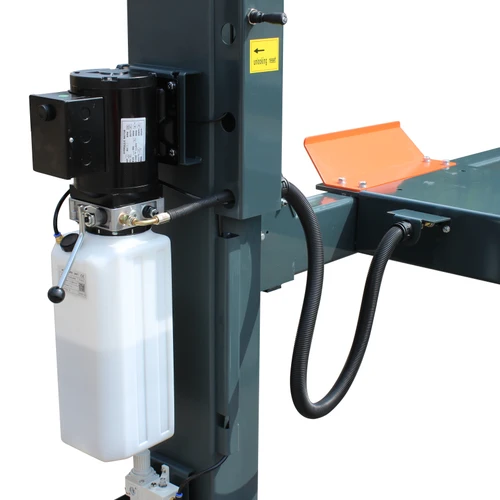

Power Unit
|
Motor
|
4 HP, 220V, 60 HZ, 1ph
|
|
Oil
|
AW32 or AW46
|
|
Breaker
|
30A
|
Shipping
|
Weight
|
3,097 LBS
|
|
Dimension
|
238” L * 22” W * 34” H
|
|
5 Year Structure - 3 Year Hydraulic - 2 Year Electrical
For More information visit our Warranty Page
