Meet the Stratus SAE-414C! This 4 Post Car Lift boasts an impressive 14,000 lbs lift capacity, making it perfect for lifting even your heaviest vehicles with ease. Despite its high power, it maintains a compact design, freeing up valuable space in your garage. Plus, its pneumatic safety lock release feature ensures that your vehicle stays safe and secure during maintenance. Grab your Stratus Four Post Car Storage Lift today and transform your auto work into a piece of cake!
Important Notes
- A $250 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
- Sales tax will be automatically waived for out of Texas Buyers
- Lift will be shipped with free delivery to Commercial Address, Local Installer or Truck Terminal. Residential Addresses will have a additional $150 fee
- Buyer is responsible for unloading freight - freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer
- There is an In-House pick-up discount of $1,200
Product Features
- 14,000 LBS. lifting capacity.

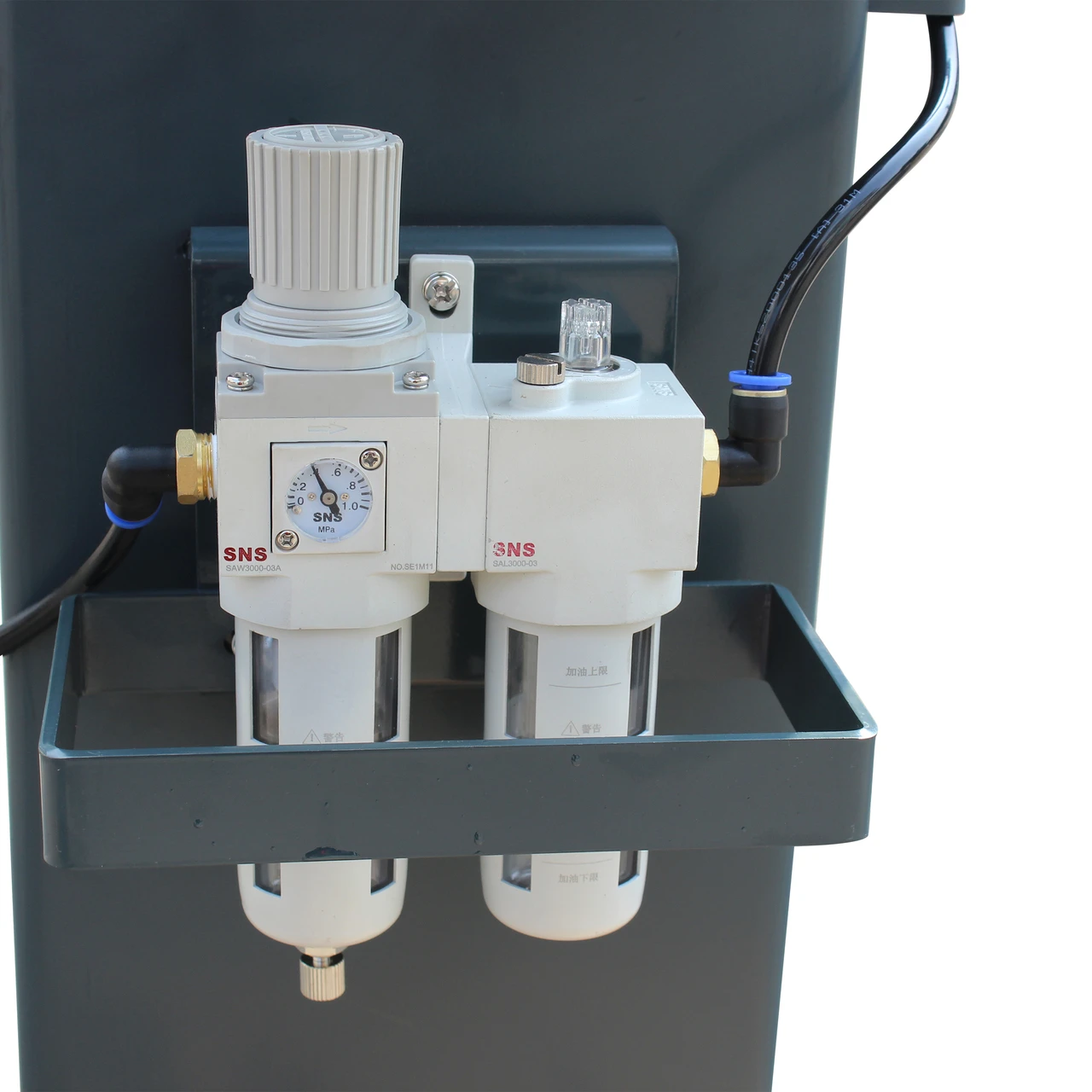

- Pneumatic safety lock release compact lift
- Max lifting height limiter switch to ensure the cylinders work within the stroke
- Skid proof diamond platform

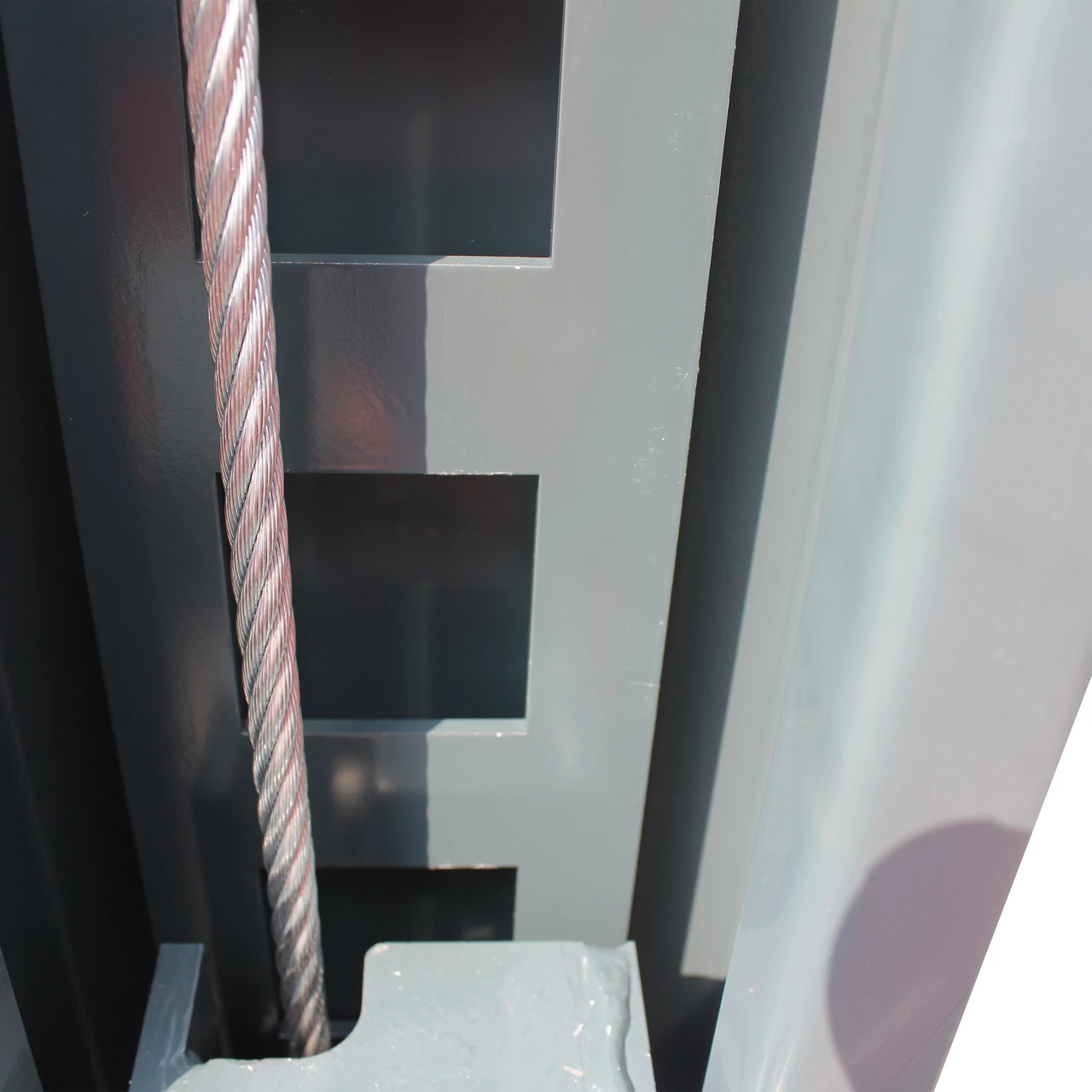

- Dual safety device design: Second safety device will be automatically locked while primary safety locks are out of operation.
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Reinorange (RAL 2004)
Standard Accessories (Included)
Optional Add-On Accessories (Sold Separately)
Product Specifications
Capacity
Rise
|
Min lifting height
|
7 1/2” (191 MM)
|
|
Max lifting height
|
73 7/16” (1865 MM)
|
|
Lifting Time
|
~50 SEC
|
|
Clearance Height
|
65 15/16” (1675 MM)
|
Outside Dimensions
|
Overall Height
|
91 ½” (2324 MM)
|
|
Overall Width
|
144 9/16” (3672 MM)
|
|
Overall Length w/ ramps
|
253 1/8” (6430 MM)
|
|
Overall Length w/o ramps
|
213 3/8” (5420 MM)
|
Inside Dimensions
|
Width columns
|
107 9/16” (2732 MM)
|
|
Drive Thru
|
82 1/2” – 86 7/16” (2096 MM – 2196 MM)
|
|
Runways
|
Runway width
|
20” (508 MM)
|
|
Runway Length
|
203 1/8” (5160 MM
|
|
Between Runways
|
42 1/2” – 46 7/16” (1080 MM – 1180 MM)
|
Power Unit
|
Motor
|
4 HP, 220V, 60 HZ, 1ph
|
|
Oil
|
AW32 or AW46
|
|
Breaker
|
30A
|
Shipping
|
Weight
|
3,027 LBS
|
|
Dimension
|
211” L * 25” W * 37” H
|
|
